LONG FRAME 1/4" TWIN ROW JACK PANELS
204
JACK PANELS
PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

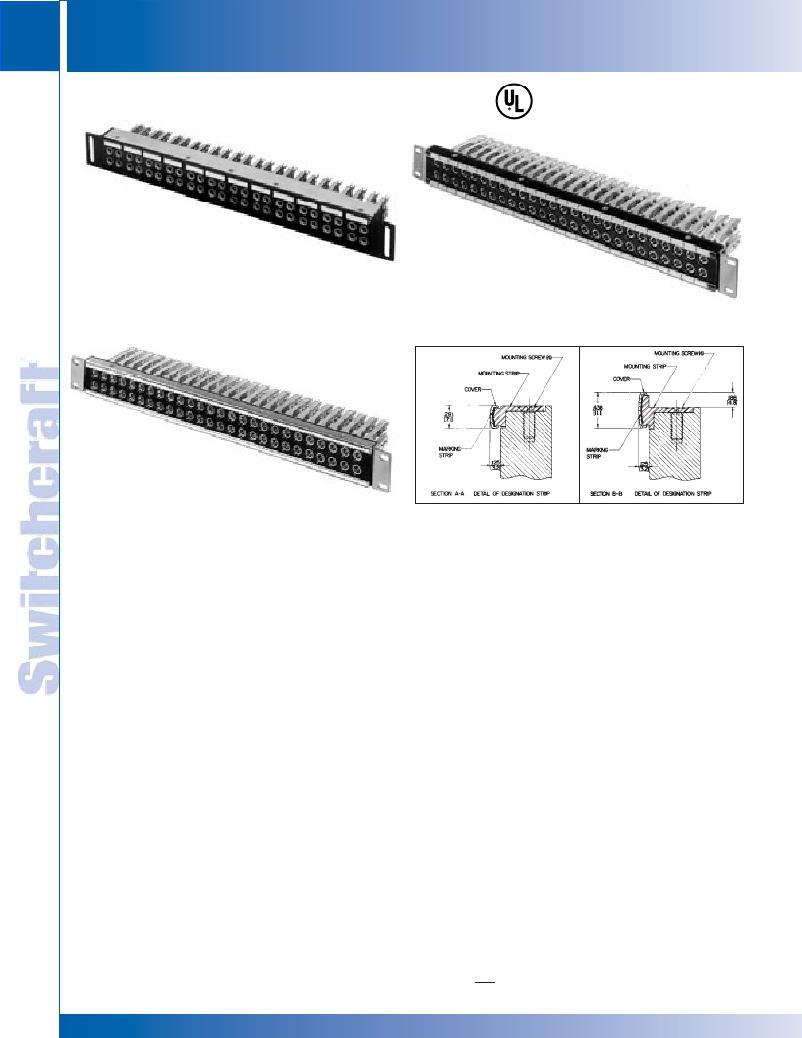

LONG FRAME (1/4") TWIN ROW JACK PANELS
Series 2400
*Shown with optional jacks,
See next page for specific
part numbers.
Series 2600
*Shown with optional jacks,
See next page for specific
part numbers.
STANDARD TWIN ROW JACK PANELS
SERIES 2400, 2600, 2600300, 2700300 – PHENOLIC
Twin row jack panels offer greater jack density - up to 52 jacks
per panel. All panels fit standard 19" wide racks. Blank panels
or standard assemblies can be ordered from Switchcraft.
Series 2600 panels are direct equivalent to WEco #230A.
SERIES 2400
Twin row panel accommodates 48 T-Jax ? . Openings are on
alternate .625" and .75" centers. Panel is 2.125" high and fits
standard 19" racks. Twin plug cannot be cross-connected
between jacks in adjacent quads, but may be connected either
horizontally or vertically in the same quad. Single designation
strip.
SERIES 2500
Same as Series 2400 except MT-Jax ? are used.
SERIES 2600
Twin row panel accommodates 52 T-Jax ? in standard 1.75" x
19" racks. Jack openings are on continuous centers. Twin plug
can be connected to any two adjacent jacks, either horizontally
or vertically. Two designation strips. WEco equivalent is #230A.
SERIES 2600300
Same as Series 2600, except designation strips are
Kwik-Change ? type, providing larger vertical marking area. Top
strip holder is recessed into top of panel to provide additional
Series 2600301
*Shown with optional jacks,
See next page for specific
part numbers.
strength. 2600301 has single height designation strips (one
above and below each row of jacks).
2600310
Has a double height strip above top row and a steel reinforcing
strip below bottom row. Top strip has .188" overhang above
1.75" panel height, helping seal the small opening between
adjacent panels. Note: overhang prevents mounting panel one
above another in a rack.
SERIES 2700
Same as Series 2600 except MT-Jax ? are used in panel
assemblies. The series is available with cable tie bar.
ORDERING
1. Order basic panels and popular assemblies by part number
from table.
2. For special panels provide complete details with your inquiry
or order.
3. Series 2600 is available with hole pre-drilled for vertical
designation strips, Series DS320. Add prefix “D” to part
number (D2600301, etc.).
4. Jack Mounting Screws: #6-32, P10725, can be ordered
separately. Contact Switchcraft.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
